GHC 45X46 Clamping Shaft Cross Slider Coupling For Industry Connection

Advantages

1. The middle of the coupling is connected with a cross block

2. Allow large radial and angular deviations

3. Zero backlash

4. High torque rigidity and sensitivity

5. Simple structure, anti-oil corrosion and point-up insulation

Please contact us for more information !

Products Parameters

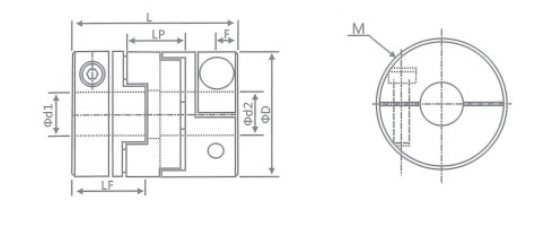

Production Drawings

Aluminum Oldham Shaft Coupling Suppliers Efficient Energy Transmission 45X46mm

Production Datasheet

model parameter common bore diameter d1,d2 ΦD L LF LP F M tightening screw torque
(N.M)
GHC-16X21 4,5,6,6.35 16 21 8.6 11.6 2.5 M2.5 1
GHC-16X30 4,5,6,6.35 16 30 13.1 11.6 3 M2.5 1
GHC-20X22 5,6,6.35,7,8 20 22 8.6 12.7 2.5 M2.5 1
GHC-20x33 5,6,6.35,7,8 20 33 14.1 12.7 3 M2.5 1
GHC-25x28 5,6,6.35,8,9,9.525,10,11,12 25 28 11.7 16.65 3 M3 1.5
GHC-25X39 5,6,6.35,8,9,9.525,10,11,12 25 39 17.2 16.65 4.2 M3 1.5
GHC-32X33 5,6,8,9,9.525,10,11,12.12.7,14,15,16 32 33 14 19.5 3 M4 2.5
GHC-32X45 5,6,8,9,9.525,10,11,12,12.7,14,15,16 32 45 20 19.5 4.5 M4 2.5
GHC-40X50 8,9,9.525,10,11,12,14,15,16,17,18,19 40 50 23 18.4 7 M5 7
GHC-45X46 8,9,9.525,10,11,12,14,15,16,17,18,19,20,22 45 46 21 18.4 7 M5 7
GHC-50X53 10,11,12.7,14,15,16,17,18,19,20,22,24 50 53 24 15 7.5 M6 12
GHC-50X58 10,11,12.7,14,15,16,17,18,19,20,22,24 50 58 26.5 17.5 8 M6 12
GHC-55X57 10,11,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32 55 57 26 17.5 7.8 M6 12
GHC-63X71 14,15,16,17,18,19,20,22,24,25,28,30,32 63 71 33 24 10 M8 20
GHC-70X77 14,15,16,17,18,19,20,22,24,25,28,30,32,35,38 70 77 29.5 25 12 M8 20
model parameter Rated torque
(N.M)*		 allowable eccentricity
(mm)*		 allowable deflection angle
(°)*		 allowable axial deviation
(mm)*		 maximum speed
rpm		 static torsional stiffness
(N.M/rad)		 moment of inertia
(Kg.M2)		 Material of shaft sleeve Material of shrapnel surface treatment weight
(g)
GHC-16X21 0.7 0.8 3 ±0.2 8500 30 5.5x10-7 High strength aluminum alloy P A 6 6 Anodizing treatment 8
GHC-16X30 0.7 0.8 3 ±0.2 9000 30 5.9x10-7 12
GHC-20X22 1.2 1.2 3 ±0.2 6500 58 1.3x10-6 13
GHC-20x33 1.2 1.2 3 ±0.2 7000 58 1.5x10-6 19
GHC-25X28 2 1.6 3 ±0.2 5500 130 4.0x10-6 24
GHC-25X39 22 1.6 3 ±0.2 6000 130 4.5x10-6 35
GHC-32X33 4.5 2 3 ±0.2 4500 270 1.3x10-5 48
GHC-32X45 4.5 2 3 ±0.2 4800 270 1.5x10-5 67
GHC-40X50 9 2.4 3 ±0.2 3600 520 4.2x10-5 114
GHC-45X46 12 2.5 3 ±0.2 3500 800 4.5x10-5 140
GHC-50X53 19 2.6 3 ±0.2 3000 800 1.0x10-4 190
GHC-50X58 19 3 3 ±0.2 3000 800 1.1x10-4 215
GHC-55X57 25 3.2 3 ±0.2 3000 900 1.3x10-5 260
GHC-63X71 33 3 3 ±0.2 2550 1200 3.5x10-4 455
GHC-70X77 56 3.5 3 ±0.2 2500 1260 4.1x10-5 520
